Camera Lesson

Understanding Your Camera: A lesson in aperture, depth of field, exposure and shutter speed.

Your photography will change for the better as soon as you can get away from the “automatic” modes on your camera. Hopefully with this tutorial you will be able to better understand how your camera thinks and how you can use it to create the images you've always wanted.

Specifically I want to teach you how to use the “Av” mode on your camera. This stands for aperture priority, which means that you are in control of the aperture and the camera does the rest of the work for you. This lesson comes with pictures, but first we have to go over a few simplified definitions.

Exposure: amount of light allowed to fall on the camera’s sensor during a photograph

-Decreasing the exposure makes pictures darker and increasing exposure makes them brighter

Aperture: the hole or opening through which light travels (displayed as a “f” followed by a number)

-A large aperture (big hole) is denoted by a small “f” number. A small aperture (small hole) is denoted by large “f” number. For example f1.4 is a large aperture and f16 is a small aperture

Shutter speed: amount of time the camera’s sensor sees the light (displayed seconds)

Depth of field (shallow): only what you choose to focus on will be in sharp focus

Depth of field (deep): all objects in the photograph are in sharp focus

Here is a representation of the different apertures. Remember that these are located within your lens, not the camera itself, and not all lenses have really large apertures. Your lens will have largest aperture capable printed on it somewhere.



Okay, so why would we want to change the aperture and what happens when you do? Well it’s time to combine a few of those definitions, so if you get lost just refer back to the top.

Every time you take a picture your camera thinks about how it can make the image at the exposure that you set. In most instances your exposure is set to “0” as shown below.


So with each picture your camera is gathering the amount of light required to make a “0” image for you. So how does aperture and shutter speed come into play?

Think of it like this… you have a milkshake that you need to drink and you have the choice of two straws. One of the straws is really fat (f1.4) and the other is really skinny (f16). Now with both straws you will be able to drink all of your delicious milkshake, but you will be able to do it a lot faster if you choose the fat straw over the skinny one.

Photographs work the same way. Choosing a large aperture (f1.4) means that the camera will give you a really fast shutter speed and choosing a small aperture means that the shutter speed will have to be slower in order to “drink” the same amount of light. Here are some pictures to show what I mean.

camera lesson edited.jpg

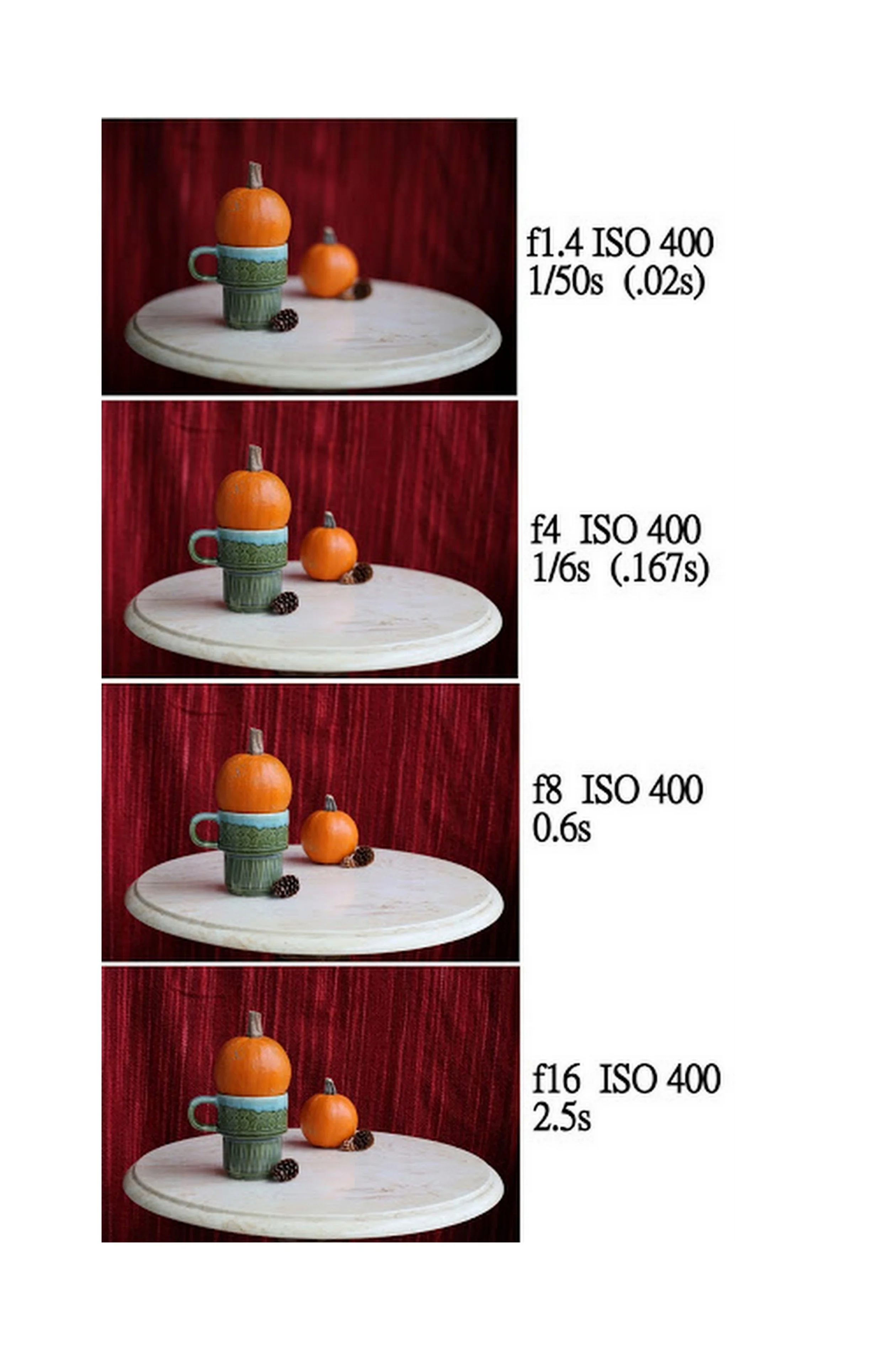

In these pictures I was focused on the mug and was in “Av” mode; don't pay attention to the ISO setting (that is for another day) . I was only in control of the aperture and the camera chose the shutter speed for me. The top picture was taken with the largest aperture (f1.4), so the camera set the shutter speed to 0.02 seconds. As you can see when I decreased the aperture to f4, f8 then f16 the camera had to slow down the shutter speed each time in order to drink up all the light that I wanted it to.

From these series of images we can also learn about depth of field. As the aperture went from large (f1.4) to small (f16) the depth of field got deeper. In the first image with the aperture set to f1.4, only the mug and the other things at the same distance from the camera were in focus. As I moved the aperture to f4 you can start to see that the pumpkin in the background is getting a little sharper, but the backdrop is still out of focus. At f8 the backdrop gets a little sharper and by f16 the objects at all distances from the camera are in sharp focus.

But what happens if you change the exposure away from the “0”? By moving it to the left (towards the negative numbers) you are saying to your camera that you want the picture to be darker and by moving it to the right (towards the positive numbers) you are saying you want your pictures brighter. Take a look below… the left hand column is set to an exposure of (-1) the middle at (0) and the right hand column is set to (+1).

camera lesson edited.jpg

As you go down each column the aperture is getting smaller, so just like in the first example the shutter speed is slowing down. Yet you can also see that each row has the same aperture, but the shutter speed is getting slower as you move to the right. Why is this happening if my “straw size” isn’t changing? Well by setting the exposure to “-1” you are only getting a small milkshake, at “0” you get a medium, and at “+1” you get a large. So yes you have the same size straw for each milkshake, but you can finish a small milkshake a lot faster than you can finish a large.

That’s all nice and fancy, but how is all that info practical when I go out and start taking pictures?

  • Is your background ugly or boring? If yes, then make your aperture larger so that your background is not in focus.
  • Getting blurry pictures because your shutter speed is too slow? Make your aperture larger so that you can drink up that light faster and your pictures won’t be blurry.
  • Taking a group picture and the people in the back aren't in focus? Decrease your aperture so that everyone will be in focus.

I hope that you were able to learn some camera basics from this tutorial! There is a lot more to learn, but everyone has to start somewhere! If you can grasp the concepts above, then you are well on your way to mastering your camera!

All images above were unedited and taken with a 5D Mark III with a Canon 50mm f1.4 lens.
